Home 1984 Mercedes-Benz 380SE Base 3.8L V8 - Gas Engine Vacuum Connection and Light Range Regulator

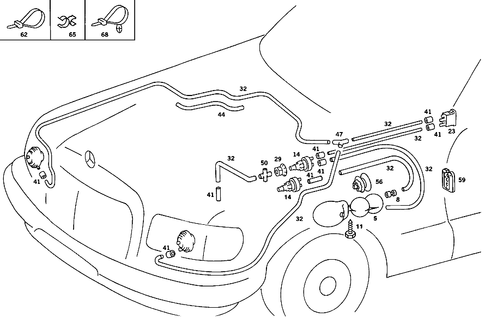

Engine Vacuum Connection and Light Range Regulator for 1984 Mercedes-Benz 380SE

No.

Part # / Description / Price

Price

Container

123-800-11-19

Mercedes-Benz

Description: Heating, selection program. Light range regulator supply tank. Heating,air conditioner.

View Details

Container

107-800-08-19

Mercedes-Benz

Description: Orthopaedic backrest. Heating,air conditioner. Headlamp leveling system. Wheelhouse, front right. Vacuum supply tank.

View Details

Seal

107-805-01-98

Mercedes-Benz

Description: Vacuum tank.

MSRP $3.40

$2.89

MSRP $3.40

$2.89

Tapping Screw

007976-004216

Mercedes-Benz

Description: Front fender to wheelhouse bracket. 4.8x13. Partition panel to fire wall,wheelhouse,connection support,and console. 4.8x13. Mounting, cover. 4.8x13. To 140 470 04 47. 4.8x13. Control unit. 4.8x13. Cooling pipe to side member and to engine cross member. 4.8x13. Line to upper rear wall. 4.8x13. High pressure line to subframe. 4.8x13. Screening below gear lever. 4.8x13. Heat shield mounting. 4.8x13.

MSRP $2.00

$1.70

MSRP $2.00

$1.70

Check Valve

126-800-00-78

Mercedes-Benz

Description: Heater check valve. Instrument panel. Bracket to cup in engine compartment. Air conditioner case to partition panel. Light range regulator and heating. Engine compartment,left. Headlamp leveling system.

MSRP $58.00

$49.30

MSRP $58.00

$49.30

Switch

000-800-04-73

Mercedes-Benz

Description: Light range regulator;at covering with light rotary switch. Headlamp leveling system 000 800 07 73. Light range adjuster.

View Details

Ring

126-805-00-99

Mercedes-Benz

Description: To check valve in engine compartment.

View Details

Piping

000-158-14-35

Mercedes-Benz

Notes: ORDER BY THE METER

Description: Range of delivery for subsequent installation.

MSRP $4.50

$3.83

MSRP $4.50

$3.83

Hose

007-997-61-82

Mercedes-Benz

Notes: ORDER BY THE METER

Description: Range of delivery for subsequent installation.

MSRP $11.50

$9.78

MSRP $11.50

$9.78

Insulating Tubing

040621-005200

Mercedes-Benz

Notes: ORDER BY THE METER

Description: FROM CHECK VALVE TO SUPPLY TANK 650 MMInside diameter: 5mmMaterial thickness: 0,6mm. 519 MMInside diameter: 5mmMaterial thickness: 0,6mm. 940 MMInside diameter: 5mmMaterial thickness: 0,6mm. CONTROL VALVE, 245 MMInside diameter: 5mmMaterial thickness: 0,6m ...

MSRP $2.20

$1.87

MSRP $2.20

$1.87

Branch Fitting

117-078-01-45

Mercedes-Benz

MSRP $8.25

$7.01

MSRP $8.25

$7.01

Branch Fitting

117-078-00-45

Mercedes-Benz

MSRP $10.00

$8.50

MSRP $10.00

$8.50

Grommet

008-997-17-81-64

Mercedes-Benz

MSRP $14.50

$12.33

MSRP $14.50

$12.33

Feed-Through Grommet

317-997-02-81

Mercedes-Benz

Description: Vacuum lines thru front panel. 10 mm. Door cable harnesses. 10 mm. For hole in firewall,bottom right. 10 mm. Piping heated rear window pane. 10 mm. Rear-end door. 10 mm. Passage. 10 mm.

MSRP $11.00

$9.35

MSRP $11.00

$9.35
