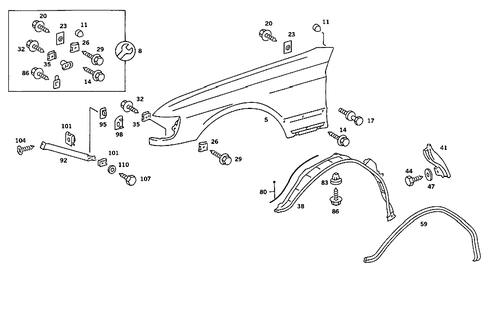

Front Fender for 1984 Mercedes-Benz 380SE
No.
Part # / Description / Price
Price
5
Front Fender
Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY (SEE SERVICE INFORMATION GROUP 88/20 DATED 22.12.81)
5
Front Fender Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY (SEE SERVICE INFORMATION GROUP 88/20 DATED 22.12.81)
5
MSRP $1,360.00
$1,156.00
8
Edging Mercedes-Benz
Mercedes-Benz Description: Panelling to front fender. Garnish moulding to front door. Garnish moulding to front fender.
11
Buffer Mercedes-Benz
Mercedes-Benz Description: Front fender to front panel pillar. (rear body panel),bottom. At tail central piece,bottom. See fig. No.90.
14
Screw Mercedes-Benz
Mercedes-Benz Description: M6x18. Rear seat bench backrest to rear panel. Fender to body. Front fender to wheelhouse.
MSRP $2.40
$2.04
MSRP $2.40
$2.04
17
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Ground cable to damper strut dome. Bracket.
MSRP $2.20
$1.87
MSRP $2.20
$1.87
20
Screw Mercedes-Benz
Mercedes-Benz Description: Front fender to wheelhouse. Front fender to front panel pillar. Bracket to heater case. Partition panel to side member and to front stiffening.
MSRP $3.20
$2.72
MSRP $3.20
$2.72
23
MSRP $1.20
$1.02
26
Socket Nut Mercedes-Benz
Mercedes-Benz Description: Handle to door. Left grab handle. Center panelling at door trim panel. Schraubpunkt srs plakete.
MSRP $5.50
$4.68
MSRP $5.50
$4.68
29
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Front fender to bumper bracket. Front fender partition panel to wheelhouse. Front fender to wheelhouse,bottom front. Bracket to frame. 6,3 x 13. Bracket to cowl. As required. 6.3x13. Bracket to wheel arch panel.
MSRP $1.70
$1.45
MSRP $1.70
$1.45
32
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Front fender to wheelhouse bracket. 4.8x13. Partition panel to fire wall,wheelhouse,connection support,and console. 4.8x13. Mounting, cover. 4.8x13. To 140 470 04 47. 4.8x13. Control unit. 4.8x13. Cooling pipe to side member and to engine cross member. 4.8x13. Line to upper rear wall. 4.8x13. High pressure line to subframe. 4.8x13. Screening below gear lever. 4.8x13. Heat shield mounting. 4.8x13.
MSRP $2.00
$1.70
MSRP $2.00
$1.70
38
38
Partition Mercedes-Benz
Mercedes-Benz Description: On wheelhouse,front fender,and fire wall,left.
MSRP $99.00
$84.15
MSRP $99.00
$84.15
41
Seal Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
UP TO CHASSIS 021 000059 022 000112 032 000036 036 000042
UP TO CHASSIS 021 000059 022 000112 032 000036 036 000042
Description: For repair purposes only. Partition panel to fire wall,right.
41
Seal Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
UP TO CHASSIS 021 000059 022 000112 032 000036 036 000042
UP TO CHASSIS 021 000059 022 000112 032 000036 036 000042
Description: For repair purposes only. Partition panel to fire wall,left.
44
Tapping Screw Mercedes-Benz
Mercedes-Benz Notes: UP TO CHASSIS
021 000059
022 000112
032 000036
036 000042
Description: GRAB HANDLE TO ROOF RAIL. 4.8X32
Diameter: 4,8mm
Thread code letter: R. PLUG SOCKET TO BRACKET. 4.8X32
Diameter: 4,8mm
Thread code letter: R.
Diameter: 4,8mm
Thread code letter: R. PLUG SOCKET TO BRACKET. 4.8X32
Diameter: 4,8mm
Thread code letter: R.
MSRP $2.90
$2.47
MSRP $2.90
$2.47
47
MSRP $1.70
$1.45
59
Seal Mercedes-Benz
Mercedes-Benz Description: Partition panel,outside. Between partition panel & front fender 1375 mm. 1285 mm.
MSRP $19.50
$16.58
MSRP $19.50
$16.58
83
MSRP $6.25
$5.31
86
MSRP $4.90
$4.17
92
Trim Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY (SEE SERVICE INFORMATION GROUP 88/21 DATED 19.01.82)
Description: Not used with headlamp wiper/washer. Left, below lighting unit.
92
Panel Mercedes-Benz
Mercedes-Benz Notes: FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.
021 010594
022,023 040751
032,033 019656
036,037 012651
92
Trim Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY (SEE SERVICE INFORMATION GROUP 88/21 DATED 19.01.82)
Description: Not used with headlamp wiper/washer. Right, below lighting unit.
MSRP $24.50
$20.83
MSRP $24.50
$20.83
92
Panel Mercedes-Benz
Mercedes-Benz Notes: FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.
021 010594
022,023 040751
032,033 019656
036,037 012651
98
Bracket Mercedes-Benz
Mercedes-Benz Notes: UP TO CHASSIS
021 010594
022,023 040751
032,033 019656
036,037 012651
Description: Panelling to right front fender.
98
Bracket Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
UP TO CHASSIS 021 010594 022,023 040751 032,033 019656 036,037 012651
UP TO CHASSIS 021 010594 022,023 040751 032,033 019656 036,037 012651
Description: Panelling to left front fender.
101
Securing Mercedes-Benz
Mercedes-Benz Description: Bracket mounting. Instrument panel to front-end assembly. Central partition panel to engine compartment partition panel. Fire extinguisher bracket. Receiver attachment,tv. Bracket to bracket. Door lining to interior plate.
MSRP $3.40
$2.89
MSRP $3.40
$2.89
104
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Front fender to bracket at front lateral stiffening. 4.8x13. Panelling below lighting unit. 4.8x13. For covering. 4.8x13. Engine hood release cable to front panel,bottom. 4.8x13.
110
Washer Mercedes-Benz
Mercedes-Benz Notes: FROM CHASSIS
021 010595
022,023 040752
032,033 019657
036,037 012652
Description: Pull rod to guide bearing.
MSRP $3.00
$2.55
MSRP $3.00
$2.55
No.
Part # / Description / Price
Price
5
Front Fender Mercedes-Benz
Mercedes-Benz Notes: EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO.: A 407632
THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE
THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE
Description: Left.
5
Front Fender Mercedes-Benz
Mercedes-Benz Notes: EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO.: A 407632
THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE
THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE
Description: Right.
80
Hexagon Head Screw Mercedes-Benz
Mercedes-Benz Description: Above posterior muffler. 4.8x19. Side member lateral rear left and right. 4.8x19. Panelling to side member amg. 4.8x19. Screening to spare wheel well. 4.8x19.
MSRP $3.00
$2.55
MSRP $3.00
$2.55
No.
Part # / Description / Price
Price
5
Front Fender Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY (SEE SERVICE INFORMATION GROUP 88/20 DATED 22.12.81)
EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS,SEE FOOTN.851
UP TO END OF MODEL YEAR'85
EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS,SEE FOOTN.851
UP TO END OF MODEL YEAR'85
Description: Left.
5
Front Fender Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY (SEE SERVICE INFORMATION GROUP 88/20 DATED 22.12.81)
EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS,SEE FOOTN.851
UP TO END OF MODEL YEAR'85
EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS,SEE FOOTN.851
UP TO END OF MODEL YEAR'85
Description: Right.
